Featured High-Speed Slitting & Cut-to-Length Equipment
Factory-direct engineering configured for heavy gauge hot-rolled steel, mirror stainless, and ultra-high-strength automotive coils.
High Strength Leveling Machine
Multi-roll hydraulic leveling configured to eliminate internal stresses, center buckles, and edge waves in yield strengths up to 1200 MPa.
Explore Leveler Details
Professional Straightening Machine
Industrial heavy-duty straightening rolls providing zero-backlash roll positioning for critical downstream laser cutting and automated stamping.
Explore Straightener Specs
Hot Rolled Plate Moving Shear Line
Continuous dynamic shearing with flying synchronization, cutting heavy plates up to 25mm thickness without interrupting strip feed velocity.
Inspect Flying Shear
Stainless Steel Coil CTL Stacking Line
Integrated protective film laminating, six-high high-precision roll cassette leveler, and magnetic / vacuum automatic sheet stacking system.
Explore Stainless CTL
HR Slitting & Cut-To-Length Line
Dual-function layout combining rotary arbor side trimming and precision cut-to-length on a single footprint to maximize floor ROI.
View Combined Systems

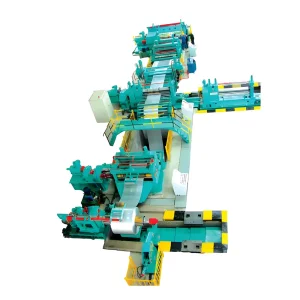

Hot Rolled Sheet Slitting Line
Heavy gauge slitter handling coils up to 35 tons, equipped with rapid hydraulic dual slitting heads and automated scrap winders.
View Slitting Specs
HR Uncoiling-Slitting-Recoiling Line
Engineered for continuous multi-strand slit coil delivery with belt-bridle tension control to prevent strip interleaving and loose sidewalls.
Explore Tube Mill Feed
HR Leveling-Shearing-Stacking Line
Comprehensive flat sheet line with precision encoder length metering, heavy pneumatic stop-gate stacking, and runout roller conveyors.
Explore Stacking LinesEngineering Principles of High-Speed Coil Slitting
Understanding the physics of rotary shear knives, tension differential management, and arbor deflections in modern steel processing.
Micron-Grade Arbor Rigidity
In high-speed rotary slitting (speeds reaching 200–300 m/min), dynamic knife deflection directly creates edge camber and excessive burr. Jianfa machines utilize forged alloy steel arbors (40Cr / 42CrMo) with dual row spherical roller bearings, maintaining radial and axial knife shaft runout within ≤ 0.003 mm.
Differential Tension Control
Master coils inherently have gauge variations between crown center and edges. Our dual-loop tension stands incorporate pneumatic friction pads alongside endless belt-bridle units, ensuring tight, uniform winding density on narrow strips without surface scoring on high-gloss or automotive materials.
Dynamic OEE Optimization
Traditional tool changeover accounts for 40% of slitting line downtime. Jianfa builds interchangeable twin-head slitting systems (turnstile quick-change) and semi-automatic robotic knife positioning that compress tooling reconfiguration time from 45 minutes down to less than 8 minutes.
| Line Specification | Light Gauge / CR & Electrical Steel | Medium Gauge / Automotive & Galvanized | Heavy Plate / Hot Rolled Structural |
|---|---|---|---|
| Strip Thickness Range | 0.15 mm – 1.5 mm | 1.0 mm – 6.0 mm | 4.0 mm – 16.0 / 20.0 mm |
| Max Slitting Velocity | 250 – 300 m/min | 150 – 200 m/min | 50 – 100 m/min |
| Slitter Arbor Diameter | Ø 120 mm – Ø 160 mm | Ø 180 mm – Ø 260 mm | Ø 280 mm – Ø 420 mm |
| Slit Width Tolerance | ± 0.02 mm – ± 0.05 mm | ± 0.05 mm – ± 0.10 mm | ± 0.15 mm – ± 0.25 mm |
| Burr Height Ratio | < 3% of material gauge | < 4% of material gauge | < 5% of material gauge |
| Coil Weight Capacity | 5,000 – 15,000 kg | 15,000 – 30,000 kg | 25,000 – 40,000 kg |
| Edge Camber Metric | < 0.10 mm / meter | < 0.15 mm / meter | < 0.30 mm / meter |
Chinese Factory Supply Chain Advantages: The Wuxi Industrial Ecosystem
Why global metal processors choose Wuxi Jianfa Machine-Building Co., Ltd. over Western OEMs and small regional aggregators.
Yangtze River Delta Cluster
Located in Meicun, Xinwu District, Wuxi, Jianfa operates in the planetary center of advanced metallurgical equipment manufacturing. Raw forged arbors, large floor-type CNC boring mills, hydraulic proportional manifolds, and planetary gearboxes are manufactured within a 50 km logistics radius, slashing production lead times by 35%.
100% In-House Vertical Machining
Unlike trading brokers, Jianfa controls the entire fabrication process across our 40,000 m² owned plant. From stress-relieving thermal annealing of welded bed frames to five-axis precision machining of arbor bearings and uncoiler mandrels, zero critical tolerances are outsourced.
Capital & Total Cost Advantage
With 45 Million RMB registered capital, Jianfa possesses the bank guarantees and cash reserves to execute multi-line turnkey projects simultaneously. We deliver German/Italian-level dimensional precision at 40%–55% lower capital expenditure, backed by world-class component partners (Siemens, Schneider, Parker, Rexroth).
Solving the High-Stakes Procurement Needs of Global Tier-1 Enterprises
How international steel mills and stamping processors de-risk heavy equipment procurement through verified engineering standards.
Surface-Critical Handling Without Imprints
Procurement teams supplying automotive exterior panels or appliance stainless steel cannot tolerate chatter marks, pinch-roll scuffing, or hydraulic oil atomization. Jianfa equips slitting lines with non-marking polyurethane-coated rolls, eddy-current zero-contact loop pits, dynamic air knives, and automatic paper uncoilers/re-interleavers to maintain pristine Class-A surface aesthetics.
Processing Ultra-High-Strength AHSS / DP Grades
Global shifts toward EV lightweighting require slitting advanced dual-phase and martensitic steels (DP780, DP980, DP1180). Slitting these alloys causes extreme knife shock and premature shear edge microfracturing. Our reinforced hydraulic clamping housings, tungsten carbide knives, and dampening bases allow continuous slitting without mechanical fatigue.
High Strip Count Recoiling Stability
When slitting 30 to 60 strands of narrow strip simultaneously, slight camber differences cause uneven tension and dangerous strip crossing. Jianfa’s separating shafts with self-locking phenolic spacers, combined with expanding recoiler mandrels with hydraulic gripper jaws, ensure straight sidewall coil packages ready for automated robot banding.
Factory Automation & MES / ERP Integration
Enterprise buyers require lines that interface seamlessly with plant SCADA and enterprise databases. Jianfa slitting lines provide full Profinet / Ethernet/IP connectivity, recipe management, barcode coil tracking, automated knife wear logging, and predictive maintenance alerts on critical bearings and drives.
Localized Field Engineering & Global Compliance Guarantees
Comprehensive safety certifications and rapid overseas field deployment so your investment starts producing on schedule.
CE Machinery Directive & OSHA/UL
Every Jianfa high-speed slitter shipped to the EU or Americas strictly adheres to the Machinery Directive 2006/42/EC, EN ISO 12100, and EN ISO 13849-1 (Category 4, Performance Level e). Includes perimeter light curtains, safety interlocked perimeter fencing, emergency trip cables along the full line length, and UL-certified control panels.
Dispatched Commissioning Engineers
We deploy multilingual mechanical and electrical engineers directly to your plant for leveling foundation calibration, precision laser alignment of the pass line, electrical loop tuning, and comprehensive operator training. Our engineers stay until the line meets its target output tolerance and cycles.
Global Spare Parts & Remote Tele-Diagnostics
Standard commercial components are sourced from tier-one international vendors (Siemens S7-1500 PLC, Rexroth hydraulics, SKF/NSK bearings), ensuring local off-the-shelf availability. For custom tooling (knives, rubbers, spacers), our rapid-dispatch hub in Wuxi provides international air courier shipping within 48–72 hours.
Technological Frontiers & Development Trends in Coil Slitting
Pioneering smart manufacturing through servo technology, artificial intelligence, and eco-friendly regenerative drives.
Automatic Closed-Loop Knife Clearance
The future of precision slitting relies on eliminating operator feel. Optical laser micrometers and servo-driven horizontal knife positioning automatically calibrate the horizontal clearance (gap) and vertical knife overlap based on the loaded material’s real-time thickness and tensile test data.
Regenerative Kinetic Energy Recovery
Decelerating 35-ton coils from 250 m/min produces massive kinetic energy. Jianfa’s modern AC flux-vector regenerative drives feed deceleration current back into your plant’s electrical power grid rather than burning it off across resistive brake resistors, cutting line electricity consumption by 22%–28%.
Digital Twin & Predictive Maintenance
Vibration sensors on arbors, continuous temperature monitoring on hydraulic reservoirs, and real-time load telemetry provide an edge-computing digital twin of the slitting process, identifying bearing wear or knife dulling dozens of production hours before catastrophic strip burr occurs.
Localized Industrial Application Scenarios
Tailored slitting and cutting configurations optimized for the specific metallurgical challenges of distinct end-use sectors.
Automotive Body & Structural Stamping
Dedicated slitting for outer panels (exposed skin), high-strength door beam members, and chassis components. Zero strip edge burr guarantees uniform flow in deep-draw dies without cracking or punching micro-tears.
CRGO/CRNGO Electrical Silicon Steel
Specialized for electrical transformer cores and EV drive motor laminations. Ultra-thin gauges (0.20 mm–0.35 mm) processed with micro-carbide tooling that limits iron loss and ensures magnetic permeability remains intact.
Heavy Structural Tube & ERW Pipe Mills
Built for heavy-gauge hot-rolled black and pickled strip. High recoiler torque tightly recoils mult-slit widths up to 16 mm thickness, ensuring fast feed directly into high-frequency tube welding lines without telescope collapse.
Frequently Asked Technical & Commercial Questions
Authoritative answers straight from Wuxi Jianfa's metallurgical engineering department.
What coil processing equipment does Wuxi Jianfa manufacture? +
Which materials and yield strengths can your slitting and cut to length lines process? +
How do I choose between a slitting line, a cut to length line and a flying shear line? +
What technical data must be provided to receive an accurate engineering proposal? +
- Material specifications (metal grades, minimum and maximum yield strengths in MPa or PSI).
- Coil dimensions (thickness range, master width range, maximum coil weight, inner diameter / outer diameter).
- Required output parameters (number of cuts, minimum slit width, cut sheet length range, burr tolerance).
- Target line speed (m/min) and annual output tonnage.
- Facility conditions (available shop floor dimensions, overhead crane capacity, plant power supply voltage/frequency).
How does Jianfa ensure international compliance (CE / OSHA) and machine safety? +
What after-sales and commissioning support is provided for international installations? +
Can clients visit the factory in Wuxi to inspect machines prior to shipment? +
Original Manufacturing Lines & Direct Resources
Verified original production lines and direct engineering links from Wuxi Jianfa Machine-Building Co., Ltd.
-
CE Certification Manufacturer Of Cut to Length Line Manufacturer, Suppliers
-
-

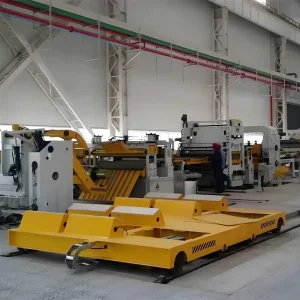

High-Quality Professional Flying Shear Production Line Manufacturer, Supplier
About Wuxi Jianfa Machine-Building Co., Ltd.
Wuxi Jianfa Machine-Building Co., Ltd. was established in the early 1980s and is recognized as a national key developing enterprise in China's metallurgical machinery sector. For more than four decades, we have continuously developed and built high-performance slitting lines, cut to length lines, flying shear production lines, precision leveling machines, straightening machines, coil processing equipment, and continuous galvanizing lines.
Headquartered at No. 58 Qunxing Road, Meicun, Xinwu District, Wuxi, Jiangsu, China, our 40,000 m² specialized facility houses advanced gantry milling, precision arbor grinding, and heavy fabrication workshops. With an experienced team of over 200 skilled engineers and technicians, Jianfa equipment operates reliably in every province of China and is exported to over 30 countries and regions worldwide—including the United States, Mexico, Guatemala, Peru, Brazil, Argentina, Greece, Albania, Bulgaria, Türkiye, Russia, Kazakhstan, Kyrgyzstan, Egypt, Libya, Jordan, Iran, the United Arab Emirates, Ethiopia, Nigeria, South Africa, India, Myanmar, Vietnam, Malaysia, Indonesia, and Australia.
Explore Complete Coil Processing Machine Specifications
Factory-direct configurations engineered to optimize plant throughput, scrap minimization, and slit edge quality.
High Strength Leveling Machine
Designed for heavy thickness coil leveling up to 20 mm plate, relieving residual stresses for laser cutting flatness.
Request Technical Drawing
Professional Straightening Machine
Engineered roll profiles to eliminate transverse cross-bow and coil curvature on thin and medium metal strips.
Request Straightener Quote
Hot Rolled Plate Moving Shear Line
Heavy gauge synchronized flying shear line providing clean orthogonal cuts on high-strength hot-rolled sheets.
View Moving Shear System
Stainless Steel CTL & Stacking Line
Six-high roll cassette levelers and automated vacuum stackers ensuring pristine, scratch-free surface preservation.
Get Stainless CTL Proposal
HR Slit & Cut-to-Length Line
Combines precision edge trimming, slitting, high-capacity leveling, and sheet stacking in a unified processing footprint.
Explore Combined Layout
HR Sheet Slitting & Recoiling Line
Equipped with dual slitter arbors for quick changeover, edge scrap ballers, and heavy-duty coil exit turnstiles.
Get Slitter Specifications
HR Uncoiling-Slitting-Recoiling Line
Engineered for high-yield steel coils, supplying accurately dimensioned, camber-free slit coils to roll formers and tube mills.
View Mill Feed Options
HR Leveling-Shearing-Stacking Line
Complete heavy plate processing line featuring high-speed hydraulic guillotine shear and dual automated stacking pockets.
View Stacking EngineeringConsult With Jianfa’s Metallurgical Engineering Team
Eliminate intermediary markups and miscommunicated technical specifications. Contact our engineering sales office in Wuxi, China directly for custom coil line layouts, cycle time simulations, and detailed technical proposals.
Factory Address: No. 58 Qunxing Road, Meicun, Xinwu District, Wuxi City, Jiangsu Province, China.
