What coil processing equipment does Wuxi Jianfa manufacture?

We manufacture complete coil processing lines: slitting lines (rotary shear lines), cut to length lines, flying shear production lines, leveling machines, straightening machines and galvanizing production lines. Equipment can be supplied as a complete line or as individual machines to upgrade an existing line.

Which materials can your slitting and cut to length lines process?

Our lines process hot-rolled, cold-rolled, galvanized, stainless steel and aluminum coils, including high-strength grades. Each line is configured around your thickness range, coil width, yield strength and surface-quality requirements.

How do I choose between a slitting line, a cut to length line and a flying shear line?

Choose a slitting line when you need narrow strips recoiled for tube mills, roll forming or stamping. Choose a cut to length line when you need flat, stacked sheets or plates. Choose a flying shear line when you need high-volume sheet output, because the shear cuts while the strip keeps moving. Combined slitting and cut to length lines are also available.

What information should I send to receive an accurate technical proposal?

Please share the material grade and yield strength, coil thickness and width range, maximum coil weight and inner/outer diameter, required output (strip widths and count, or sheet length range), tolerance and flatness requirements, target line speed and the power supply at your plant.

Do you support installation, commissioning and operator training overseas?

Yes. Our after-sales team supports installation, commissioning and operator training, and continues with remote technical support and spare parts supply after start-up.

Can I visit the factory and inspect my equipment before delivery?

Yes. Buyers are welcome to visit our 40,000 m² facility in Wuxi, Jiangsu, within easy reach of Shanghai by high-speed rail, to review production and inspect their equipment before delivery.

High-Quality Professional Flying Shear Production Line Manufacturer, Supplier

1 / 1

High-Quality Professional Flying Shear Production Line Manufacturer, Supplier

Performance and Features:

The flying shear production line uses highly reliable mechanical performance and a mature and stable electrical control system to achieve high efficiency and high quality cutting of the sheet material. The entire line is leveled, cut continuously and quickly, with high dimensional accuracy, and a user-friendly interface ensures convenient operation.

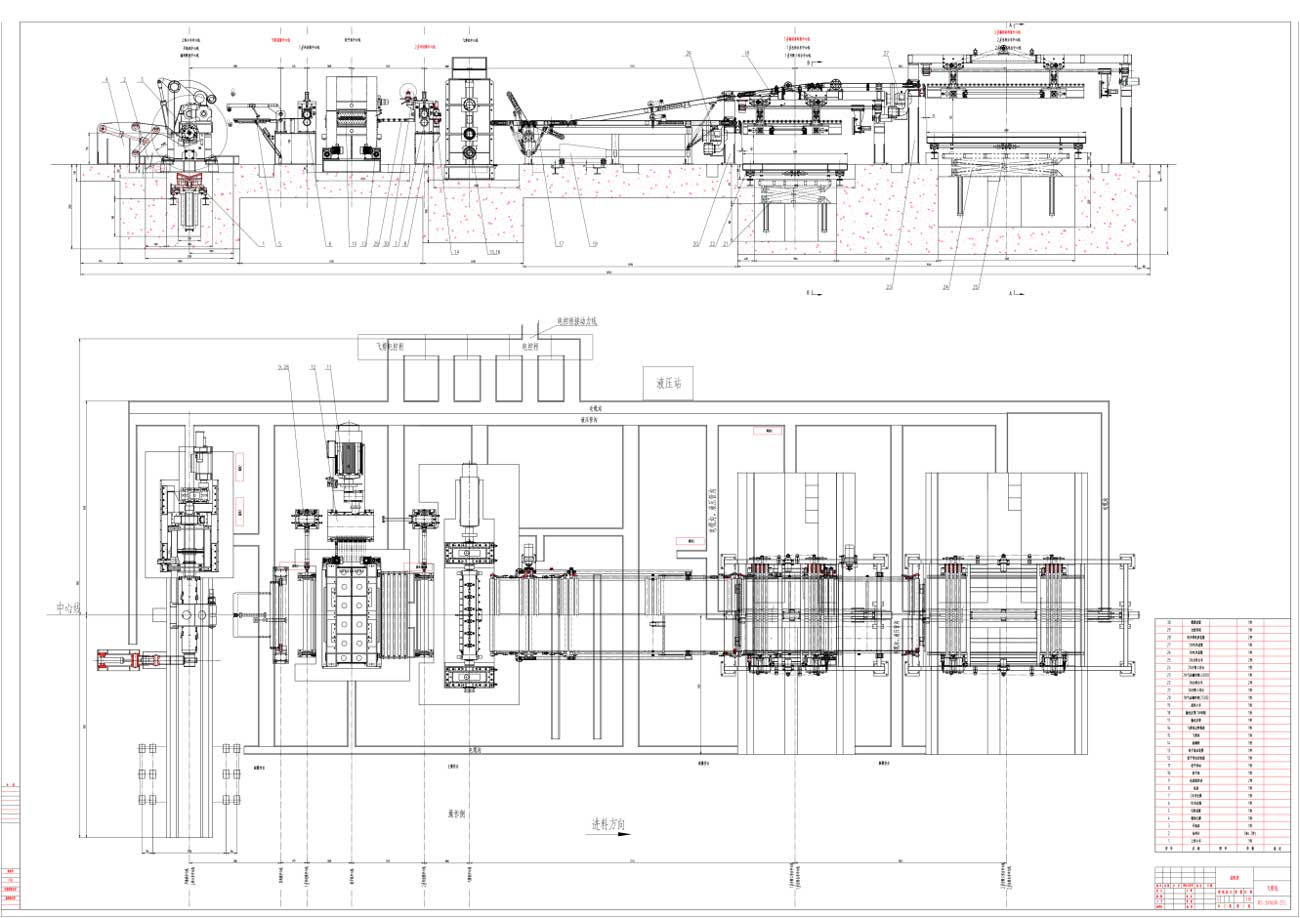

Process Flow: Loading → Uncoiling → Feeding → Clamping → Leveling Machine → Clamping → Flying Shear → Conveyor Belt → Stacking → Discharge.

Send Inquiry

Product Description

Technical Parameters

Specifications and Models	800mm	1650mm
Processing Materials	Cold Rolled Steel, Galvanized Steel, Stainless Steel, Automotive Steel	Cold Rolled Steel, Galvanized Steel, Stainless Steel, Automotive Steel
Sheet Thickness	0.3-2.0mm	0.5-3.0mm
Sheet Width	800mm	1650mm
Coil Weight	10T	20T
Production Line Speed	10-70m/min	10-80m/min
Cutting Length Accuracy	±0.3mm	±0.3mm

Product Detail

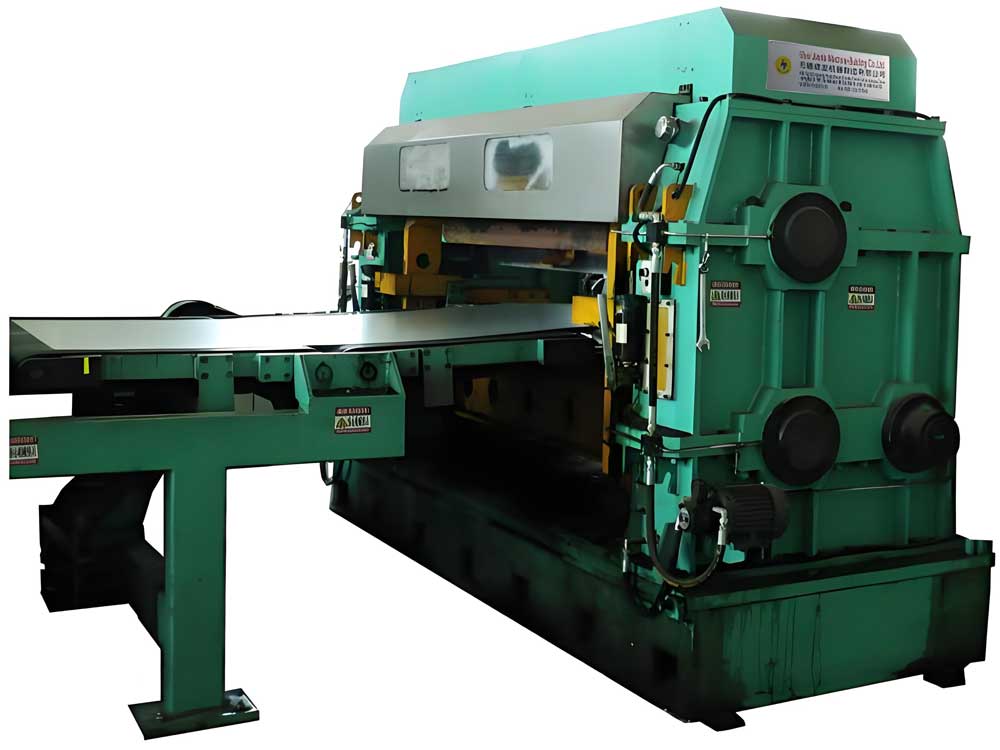

Our state-of-the-art flying shear production line combines cutting-edge technology, superior precision, and unmatched reliability to deliver exceptional performance in sheet metal processing. The system features a high-strength shear mechanism with wear-resistant alloy blades, ensuring clean, burr-free cuts even at maximum speeds of 150m/min. The fully synchronized servo drive system guarantees precise length control with an accuracy of ±0.1mm, making it ideal for high-tolerance applications.

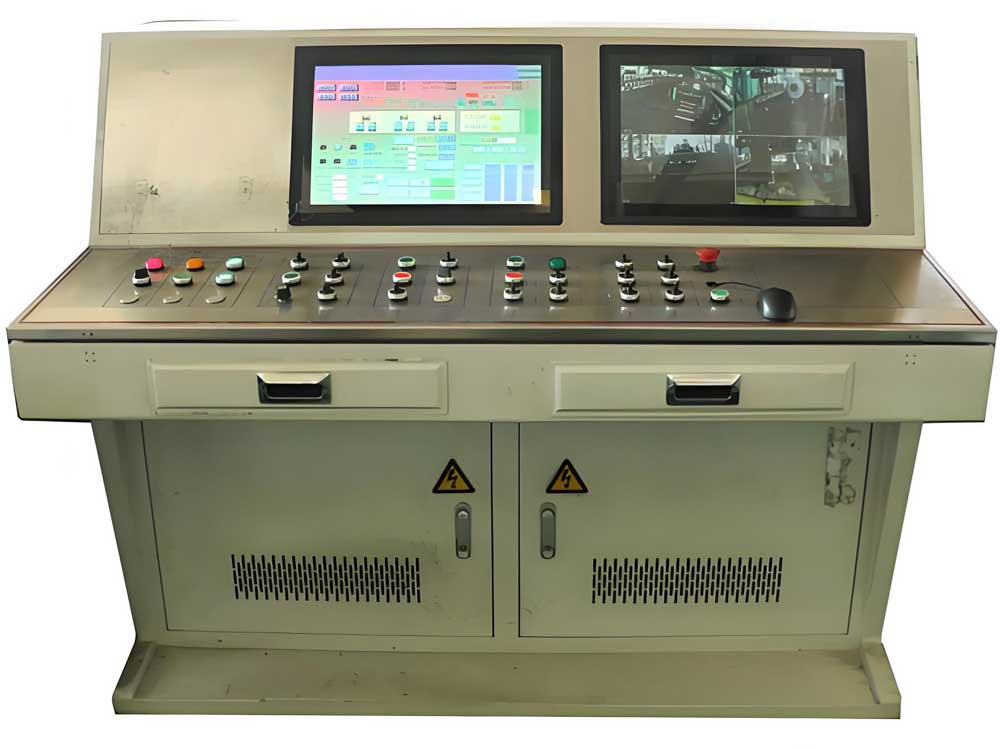

The production line incorporates an advanced hydraulic leveling system with 9-roller precision straightening, eliminating material deformation and ensuring flawless flatness. An automated lubrication system extends critical component lifespan, while real-time monitoring of motor torque, blade alignment, and feed speed optimizes performance. The intelligent HMI interface allows for quick parameter adjustments, batch switching, and fault diagnostics, minimizing downtime.

For enhanced safety, the system includes light curtains, emergency braking, and overload protection, complying with global industrial standards. Optional upgrades include laser-guided alignment, automated scrap removal, and AI-based predictive maintenance for Industry 4.0 integration.

Built for 24/7 heavy-duty operation, our flying shear line ensures high efficiency, low maintenance, and long-term durability, making it the ultimate solution for modern metal processing.

Detail Display

Frequently Asked Questions

QWhat types of materials can this flying shear production line process?

The system processes Cold Rolled Steel, Galvanized Steel, Stainless Steel, and Automotive Steel across various thicknesses and widths.

QWhat are the available model widths and thickness capacities?

The line is available in 800mm (handling thicknesses of 0.3-2.0mm and 10T coil weights) and 1650mm specifications (handling thicknesses of 0.5-3.0mm and 20T coil weights).

QWhat is the cutting precision and speed of the equipment?

The system achieves a cutting length accuracy of ±0.3mm with synchronized servo drive control up to ±0.1mm. Production line speeds reach 10-80m/min, with shearing speeds capable of reaching up to 150m/min.

QHow does the machine eliminate sheet deformation?

It utilizes an advanced hydraulic leveling system with 9-roller precision straightening to eliminate internal stress and deliver flawless flatness on processed sheets.

QWhat safety features are standard on this production line?

The equipment includes safety light curtains, emergency braking mechanisms, and overload protection to comply with global industrial safety standards.

QWhat optional smart upgrades are available for Industry 4.0 integration?

Optional configurations include laser-guided alignment, automated scrap removal, and AI-based predictive maintenance systems for smart manufacturing environments.
